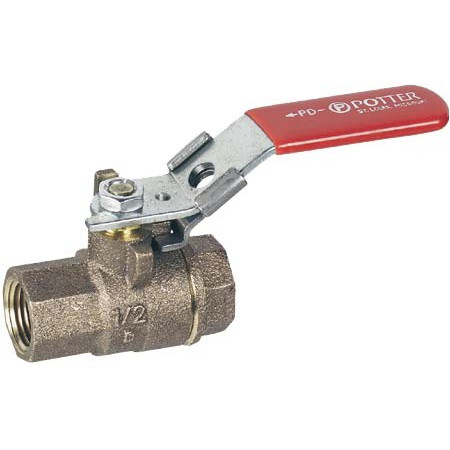

1000018 Potter BVL Lever Type Bleeder Valve

• Model Number: BVL
• Item Number: 1000018

The Model BVL, lever type bleeder valve, is for use as a test valve for pressure operated devices on wet pipe sprinkler systems that have excess pressure, or dry pipe sprinkler systems. The BVL should be installed in-line with the pressure device. It provides a convenient means for removal or testing the pressure actuated device without affecting the pressure in the system. Closing the valve (moving the valve handle perpendicular to the 1/2" pipeline) shuts off the water or air from the supply and opens a small orifi ce (pin-hole) to exhaust the pressure between the valve and the pressure device. This should provide a low pressure actuation of the pressure device, testing its operation.

• Valve Body - Bronze
• Handle - Zinc plated steel
• Maximum Pressure - 300 PSI (20.7BAR)
• Connections - 1/2" NPT
• Exhaust Orifice - .125" (3mm)
