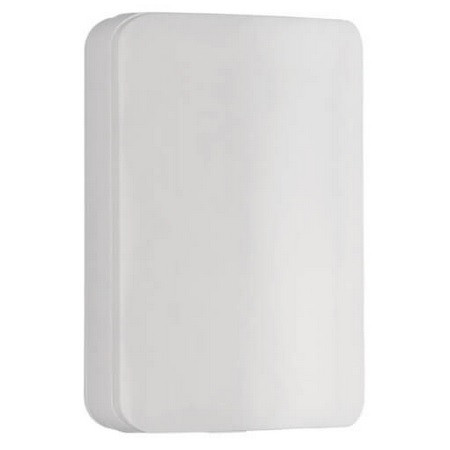

2GIG-PIR100-345 2GIG 345S Passive Infrared Motion Detector for 2GIG GC Touch, 2GIG Edge, 2GIG GC2e, and 2GIG GC3e Panels

Features:

• Impressive detection range of 30 by 50 ft for comprehensive coverage
• Includes pet immunity, filtering out movements of pets weighing up to 85 lbs. Minimizes false alarms, and includes installer-adjustable setting to on/off
• Battery life of up to 7 years
• Ships non-encrypted by default; encryption activated via onboard switch

The 2GIG PIR100-345 Passive Infrared Motion Detector is a wall-mounted unit with wide-angle motion protection. It communicates with the control panel using the 345MHz frequency. When set to High Sensitivity Mode (default), the 2GIG-PIR-345 has a maximum range of 30 ft deep x 50 ft wide.

Specifications

• Transmitter Frequency - 345MHz
• Compatibility - 2GIG Panels
• Code Outputs - Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
• Supervisory Interval - 70 Minutes
• Sensor Type - Quad Element
• Pet Immunity - Up to 85 lbs (38 kg)
• Suggested Mounting Height - 7.5 ft. (2.3 m)
• Sensor Range - 30 ft. (9.1m) x 50 ft. (15.2 m)
• Horizontal Sensing Angle - 100° Maximum Spread
• Dimensions (L x W x H) - 3.53" x 2.35" x 1.63" (5.4 x 6 x 4.1 cm)
• Weight - 3.5 oz (98 g)
• Housing Material - ABS Plastic
• Operating Temperature - 32°-120° F (0°-49° C)
• Relative Humidity - 5% to 90%, Non-condensing
• Battery (Included) - One CR 123A 3V or equivalent Lithium Battery
• Certification - ETL, FCC, and IC
