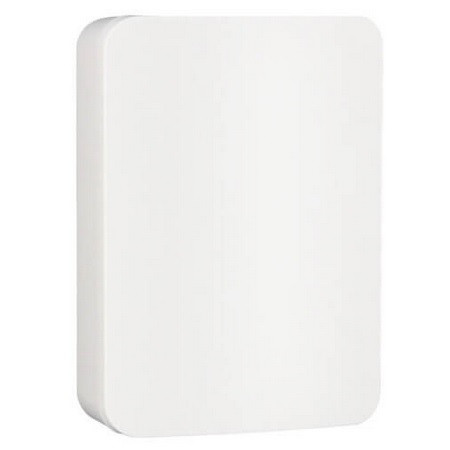

2GIG-TAKE100-345 2GIG 345S Wireless Hardwire Takeover Module for 2GIG GC Touch, 2GIG Edge, 2GIG GC2e, and 2GIG GC3e Panels

Features:

• Converts hardwired loops into as many as 8 wireless zones per module (additional modules may be added)
• 2GIG 345MHz compatible
• Can be powered by and use backup battery of an existing alarm panel
• Charging circuit for backup battery with status LED
• Supports encryption via an on-board switch
• ETL listed
• Aux output supports up to 500 mA for wired motion sensors and glass break sensors
• On/Off switchable encryption

The 2GIG Wireless hardwire Takeover Module provides installers with an easy method for taking over a 12-volt prewired security alarm system and converting the existing hardwired zones into 2GIG wireless technology. The Takeover Module cannot be used to monitor Carbon Monoxide (CO) or Fire detection zones and is intended for indoor use only.

Specifications

• Frequency - 345MHz
• Input Voltage - 16.5~20VAC
• Backup Battery - Up to 12VDC 7AH
• Dimension - 3.53" (89.7mm) x 2.56" (65.0mm) x 1.22" (31.0mm)
• Weight - 3.21 oz (90.9g)
• Operating Temperature - 32°-120° F (0° to 49° C)
• Humidity - 5-95% Non-Condensing
• AC barrel connector - DC power barrel plug, type A: 5.5mm OD, 2.1 mm ID
• Input Voltage - 9-16VDC or 16.5-20VAC
• Aux Output - 10-16V, 500mA
• Supported Zones - 8 wired zones; 1 self-monitor zone
• Regulatory - ETL, FCC, Industry Canada
