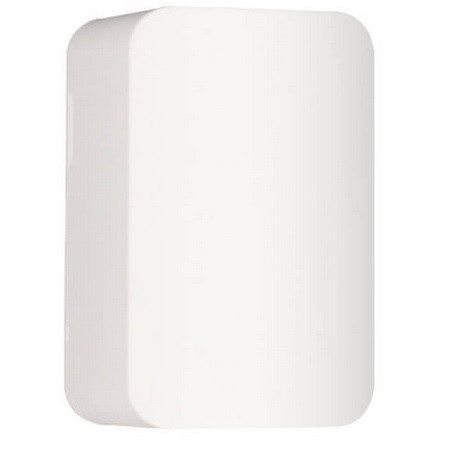

2GIG-TILT100-345 2GIG Wireless Tilt Sensor for GC Touch and 2GIG Edge Panels

Features:

• Monitors tilt status
• Case tamper and battery supervision 2GIG 345MHz compatible
• Double-sided tape and mounting screws included
• Battery life up to 10 years
• On-off switchable encryption

The 2GIG TILT100-345 sensor is designed to monitor the tilt of assets like garage doors, mailboxes, pet doors, or storm cellar doors. It communicates with the control panel using a 345 MHz frequency, transmitting a signal when titled beyond 45 degrees and sending a restore signal once it returns to a less than 45-degree angle. The sensor includes a tamper switch that alerts if the cover is removed and features low battery monitoring, sending a report when the battery level is low.

Specifications

• Transmitter Frequency - 345MHz
• Compatibility - 2GIG Panels
• Code Outputs - Alarm; Alarm Restore; Supervisory; Tamper; Tamper Restore; Low Battery
• Supervisory Interval - 70 Minutes
• External Input - Accepts NC or NO dry contact devices
• Housing Material - ABS Plastic
• Operating Temperature - 2° to 120°F (-16 to 49°C)
• Relative Humidity - 15% to 85%, Non-condensing
• Batteries (Installed) - One 3V CR2450 Lithium Battery
• Battery Life - Up to 10-years
• Certification - ETL, FCC, Industry Canada
