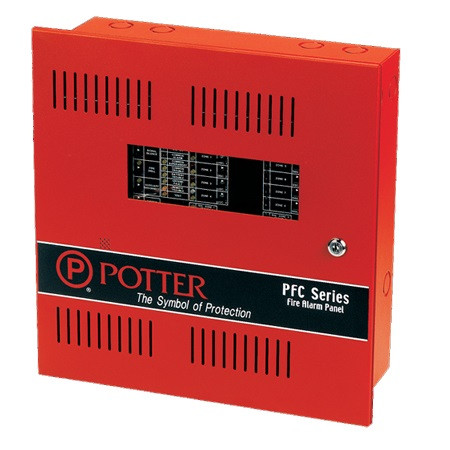

3992020 Potter PFC-5004E Fire Alarm Control Panel

• Model Number: PFC-5004E
• Item Number: 3992020
• 4 Class B (Style B) Initiating Circuits which may be configured as 2 Class A (Style D) circuits. Expandable up to 8 Class B (Style B) or 4 Class A (Style D) Initiating Circuits
• 2 Class A/B (Style Z/Y) Indicating Circuits with individual trouble indicators (1.7 Amps max. per circuit.) Expandable up to 4 Class A/B (Style Z/Y) Indicating circuits
• Each Indicating Circuit can be configured as Silenceable or Non-Silenceable
• Audibles may be configured as Steady, Temporal Code, California Code or March Time
• Predefined Initiating Circuits can be configured as Waterflow or Latching/Non- Latching Supervisory
• Auxiliary relay contacts for Common Alarm, Common Trouble and Common Supervisory.
• If no Supervisory circuits are enabled, the Supervisory relay becomes a second Alarm relay.
• Zone Disconnect Switches

Potter's PFC-5004E Fire Alarm Control Panel is a microprocessor based unit designed for small to medium commercial, residential, multi-family, institutional and industrial occupancies. Fully configurable using DIP switches, it enables the user to configure the system to meet their specific requirements.

The PFC-5004E comes standard with 4 Class B (Style B) Initiating Circuits which may be configured as 2 Class A (Style D) circuits. In addition, it comes equipped with 2 Class A/B (Style Z/Y) Indicating circuits which are each rated at 1.7 amps. The PFC-5004E can be expanded up to 8 Class B (Style B) or 4 Class A (Style D) Initiating Circuits and 4 Class A/B (Style Z/Y) Indicating circuits with the addition of a ZA-42 Adder Circuit Module. The panel also INCLUDES A 5 Amp Power Supply which powers the system and supplies a 4-wire resettable regulated smoke power supply of 24 VDC 100mA maximum.

• Built-in RS-485 Interface for RA8F Multiplexed Remote Annunciators (Up to 3 Annunciators)
• Interface for Remote Trouble Indicator
• Built-in Walk Test operation
• Auto Signal Silence
• Selectable Alarm Verification on Initiating Circuits
• 5 Amp Power Supply
• Output for 4-wire resettable regulated smoke power supply of 24 VDC 100mA maximum.
• Output for PRTI or Remote Annunciators of 24VDC, 300mA max, unfiltered
• Extensive Transient Protection
• Easy configuration via DIP switches
