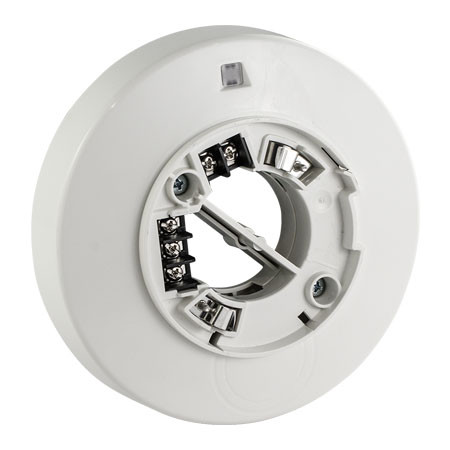

3992728 Potter PAD 100-RB Addressable Relay Base

• Model Number: PAD 100-RB
• Item Number: 3992728
• One form C relay as part of the base assembly
• Relay rating: 2A @ 30VDC, 0.5A @ 125VAC
• Works independent of the sensors attached
• May be mapped to any device connected to the Control Panel
• LED to indicate that the unit is active
• Separation included in the base for high and low voltage and power limited/non-power limited connections

The Addressable Relay Base 6” (PAD100-RB) is combination sensorbase with a relay module included. The base has a locking feature forthe sensor that may be used or removed in the field. Once the head isremoved, the relay is accessible in the bottom of the unit.

Specifications

• Working Range for SLC - 24 VDC
• Active Indicator - 1 LED
• Contact Output Style - 1 form C ( N.C / COM / N.O )
• Contact Rating - 2A @30VDC, 0.5A @125VAC
• Installation temperature range - 32°F to 120°F ( 0°C to 49°C )
• Operating relative humidity range - 0% to 93% (Non-condensing)
• Maximum number of devices per zone - 127
• Color - Eggshell White
• Dimensions (without detector)
  • Height: 0.75 in (19mm)
  • Diameter: 6.3 in (166 mm)

3992728 Datasheet
