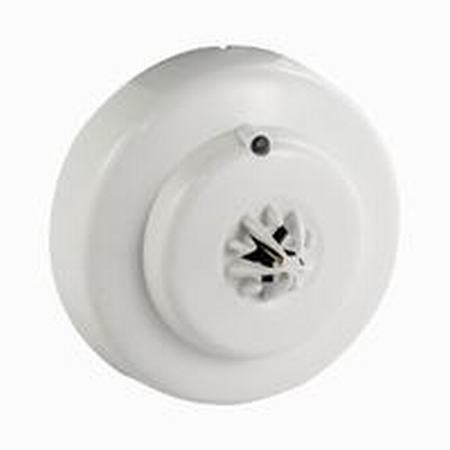

3992735 Potter PAD 100-HD Heat Detector

• Model Number: PAD 100-HD
• Item Number: 3992735
• Selectable Rate of Rise and/or Fixed Heat Detector
• Low profile
• Reliable detection technology
• LED Alarm Indicator
• Ambient temperature listing of 32^º F to 150^º F
• Simple DIP switch address setting, no programming tool required

The PAD100-HD is a listed Analog Addressable rate of rise and/or fixed temperature heat sensor compatible with any fire alarm controlpanel that has the Potter Addressable Device (PAD) protocol. The heatsensing portion utilizes a proven thermistor for accurate and reliableheat detection. The sensor and base (not included) are made of adurable plastic in an off white to blend in with the ceiling.

Specifications

• Operating Voltage - 24 VDC
• Detector Current Draw - 300 ?A
• Alarm indicator - 1 LED
• Alarm set-point range - 135 to 185 °F/ 57 to 85 °C
• Installation temperature range - 32 to 150 °F / 0 to 66 °C
• Operating relative humidity range - 0% to 93% (Non-condensing)
• Start-up time - Max. 1 sec.
• Maximum number of addresses per loop - 127
• Maximum number of lighted indicators in alarm per loop. - 30
• Color - Eggshell White
• Weight (without base) - 82g (2.89 oz)
• Dimensions (without base)
  • Height: 1.94 in (49mm)
  • Diameter 3.93 in (100mm)

3992735 Datasheet
