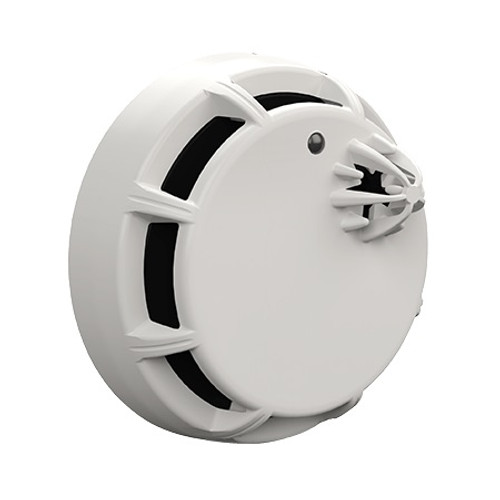

3992773 Potter PAD 200-PHCD Photo/Heat/CO Detector

Features:

• Model Number: PAD 200-PHCD
• Item Number: 3992773
• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Carbon Monoxide (CO) detection compliant with UL 2075
• Heat Detection compliant with UL 268 and UL 521 7th Edition
• Walk Test mode allows for fast easy validation of CO sensor operation
• Low profile, less than 2 inches with the base
• Wide selectable sensitivity range of 1.0 to 3.5%/foot
• Temperature range of 32° F to 115° F
• Selectable Rate of Rise and/or fixed heat detector

The PAD200-PCHD is a listed Analog Addressable photoelectric smoke sensor, rate of rise and/or fixed temperature heat sensor and carbon monoxide (CO) sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol.

Specifications

• Operating Voltage - 24 VDC
• Detector Current Draw - 300 μA
• Alarm indicator - 1 LED
• Alarm set-point range - 1.1-3.5 %/ft. (3.6-11%/m) / 135° to 174°F (57° to 79° C)
• Rate of Rise Detection (Selectable Option) - 15°F/min. (8.3°C/min.)
• Installation temperature range - 32° to 115° F / 0° to 46° C
• Operating relative humidity range - 0% to 93% (Non-condensing)
• Start-up time - 1 second
• Maximum number of addresses per loop - 127
• Maximum number of lighted indicators in alarm per loop - 30
• Color - Eggshell White
• Weight (without base) - 118.5 g (4.2 oz)
• Dimensions (without base) - Height: 1.94 in (49 mm), Diameter: 3.93 in. (100 mm)
