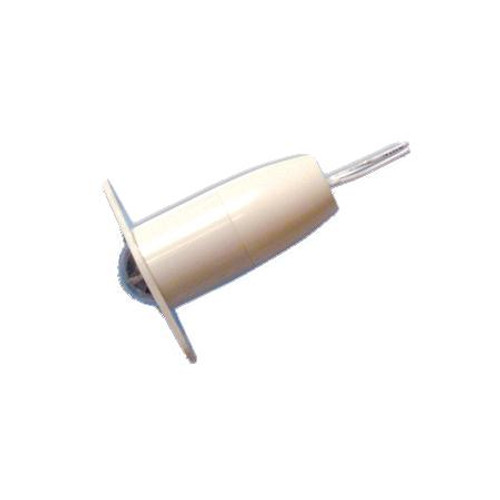

4430007-10 Potter RSW-21B N/A N/O Loop Rollerball Switch Grey 10PK

• Model Number: RSW-21B-I
• Item Number: 4430007

The RSW-21 is a roller ball type switch for a closed circuit application using a hardened stainless steel ball. It fits into a ¾” drilled hole for recessed mounting. The 5/8” diameter stainless steel ball’s overall travel stroke of 6.2mm allows for only 3mm operating stroke. Operating force is 400-500g. Lead wires are #22 and 25” long.

• Hardened stainless steeel ball
• 3mm pre-travel stroke
• Available in SPST or SPDT
• Contact - Terminals
• Contact Type - Form A N.O.
• Operating Stroke - .5”
• Pre-Travel Stroke - 2”
• Contact - 22AWG 25” Lead
• Contact Rating - 3VA
• Contact Type - Form C N.O./N.C.
• Max. Carry Current - .5 Amp
• Max. Switching Current - .2 Amp
• Breakdown Voltage - 200VDC
• Operating Force - 400-500g
• Pre-Travel Stroke - 3mm ± 1mm
• Overall Stroke - 5.2mm ± .5mm

4430007-10 Datasheet
