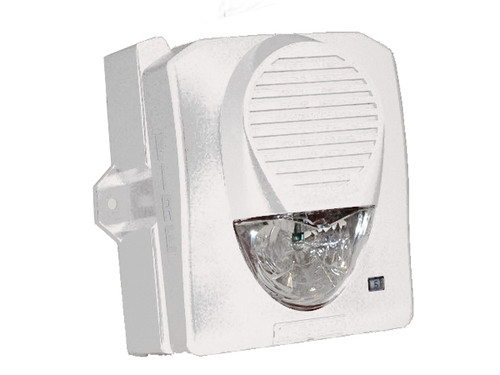

4710031 Potter SH-120W White Wall Mount Weather Proof Select a Strobe With Horn

• Model Number: SH-120W
• Item Number: 4710031

The SH-120 Series Select-A-Strobe/Horn™ is designed to provide audible and/or visual signals for fire and burglar alarm protection systems and notification signals for the purpose of life safety and protection.

The SH-120 are operable with a 120 VAC system between 96 VAC and 132 VAC. They can be interfaced with pull stations, flow switches, and sprinkler systems for residential, commercial and industrial applications.

• UL Listed
• 120 VAC operation
• Outdoor and indoor
• 6 sound output settings
• Pre-wire back plate
• Universal back plate mounting (single gang, double gang, octagon, or 4” square)
• Single screw mounting
• Low current draw
• BBX-5 weather proof backbox included
• Color - White
• Rated Voltage - 120 VAC 60Hz
• Max RMS Operating Current (mArms) - N/A (current varies with horn setting)
• Light Output - 110 cd on axis
• Flash Rate - 72 per min.
• Operating Voltage Range - 96-132 VAC
• Operating Temperature Range - -40°F to 151°F (-40°C to 66°C)
• Construction Type - indoor/outdoor
• Materials - ABS housing, polycarbonate lens

4710031 Datasheet
