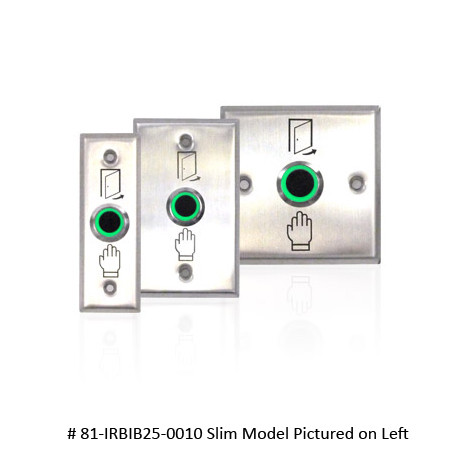

81-IRBIB25-0010 Geovision Infrared Button - Slim

Features:

• Model Number: GV-Infrared Button
• Manufacturer SKU Number: 81-IRBIB25-0010
• Sales Part Number: 530-IB25-000
• Activates without pressing the button to prevent spread of diseases.
• Specially designed to prevent any interference from other infrared.
• Double color status light and adjustable proximity range
• Door opening time can be set as trigger state (0.5~20 sec) or toggle mode output
• Operating temperature: -10C ~ +70C / 14F ~ 158F
• Sealing protection: IP65
• Infrared proximity has a total lifespan of 100,000 hours. Relay has a total lifespan of 1,000,000 times.

The GV-IB25 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with wave of hand. The touchless sensor eliminates the need to contact the button and keeps your hands clean when entering or exiting places such as hospitals, restaurants or stores. In addition, the built-in relay function allows you to program the door opening time to enhance security.

Specifications

• Standard - US / EU
• Power input - DC12V ~ DC 24.V ( 10%)
• Proximity Range - 3 ~ 12 cm / 1.18 ~ 4.72 in ( 25%)
• Output Loading - 1A, DC30V (Max.)
• Output State - Trigger state (0.5 ~ 20 sec) or toggle mode
• Life Time - Infrared sensor: 100,000 hours Relay mechanical lifespan: 1000,000 times
• Default Indicator Color - Standby Mode: Red; Activated Mode: Green (Indicator colors are adjustable.)
• Case - Stainless Steel
• Power Consumption - Maximum current 35mA, DC24V
• Operating Temperature - -10° C ~ +70° C / 14° F ~ 158° F
• Operating Humidity - Maximum 85% Rh
• Dimensions (L x W x D) - 115 x 39 x 30 mm / 4.53 x 1.54 x 1.18 in
• Weight - 70 g / 0.15 lb

81-IRBIB25-0010Datasheet
