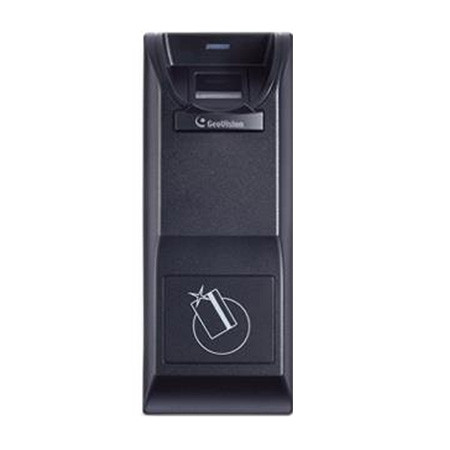

84-GF19220-2000 Geovision GeoFinger GF-1922 Optical sensor TCP/IP only 13.56MHz Fingerprint Reader

Features:

• Model Number: GV-GF1922
• Manufacturer SKU Number: 84-GF19220-2000
• Sales Part Number: 520-GF1922-200
• Work with GV-AS / GV-EV Controller and GV-ASManager
• Can be a standalone fingerprint reader
• Three types of access modes: card only, fingerprint only and card plus fingerprint
• Fingerprint templates stored on the user card
• Connect with GV-AS Controller through TCP/IP interface (WAN)
• Enroll fingerprints through TCP/IP connection with GV-ASManager (Fingerprint Only Mode)

The fingerprint reader can work with GV-AS / GV-EV Controller and GV-ASManager to create a complete access control system. Three types of operation modes are supported: Card + Fingerprint, Fingerprint Only and Card Only.

SPECIFICATIONS

• Application - Indoor use only
• Communication Interface - TCP/IP (10/100 Mps Ethernet, WAN)
• Sensor - Optical
• Sensing Area - 20 x 17 mm (0.79 x 0.67 in)
• Operation Mode - Fingerprint Only, Card + Fingerprint, Card Only
• Number of Fingerprints - Stored 1,900 (for Fingerprint Only mode)
• Supported Card - ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic), 13.56 MHz
• Output - DC 30V, 0.3A
• Input - 2 Ports, dry-contact
• Power - DC 12V, Max 250mA
• Operating Temperature - 0~50° C (32~122° F) Humidity 10%~90%
• Dimensions (H x W x D) - 48 x 59 x 138 mm (1.89 x 2.32 x 5.43 in)
• Weight - 160 g (0.35 lb)
• Certification - CE, FCC
