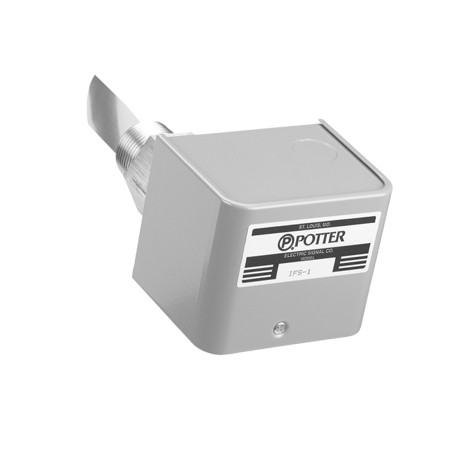

9000001 Potter IFS-1 Industrial Flow Switch

Features:

• Model - IFS-1
• Manufacturers Part# - 9000001
• UL Guide (NKPZ) for industrial control equipment per UL Standard 508 Industrial
• UL Guide (MFHX) for heating/cooling appliance switch per UL Standard 353 Limit Controls
• CSA Class (321106) for industrial control equipment per CSA Standard C22.2 No. 14-M Industrial Control Equipment

The Model IFS is a flow switch used in liquid flow lines carrying water or any fluid not harmful to brass, stainless steel, or EPDM and not classified as a hazardous fluid. This switch can serve as a way to start and stop electrically operated equipment when a flow or no flow condition occurs in a variety of applications. This device is designed for use only as an operating control. Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of the installer to add devices (safety, limit controls) that protect against, or systems (alarm, supervisory systems) that warn of control failure.

Specifications

• Maximum Service Pressure - 250 PSI
• Enclosure - NEMA Type 1, Formed sheet metal with powdercoat finish
• IFS Contacts - IFS-1 - One SPDT (Form C) switch, 15 Amps at 125/250VAC, .5 Amps at 125VDC, .25 Amps at 250VDC
• Motor Ratings - 120VAC, 240VAC
• Horsepower - 1/8, 1/4
• AC F.L.A - 3.8, 2.9
• AC L.R.A. - 22.8, 17.4
• Pilot Duty Rating - 125 VA, 120/240 VAC
• Ambient Temperature Range - 32°F/176°F (0°C/80°C)
• Media Temperature Range - 32°F/250°F (0°C/121°C)
• IFS Pipe Connection - 1 in. NPT Brass
• Conduit Entrance - Two openings for 1/2" conduit
• Usage - For pipe sizes 1" - 8"
