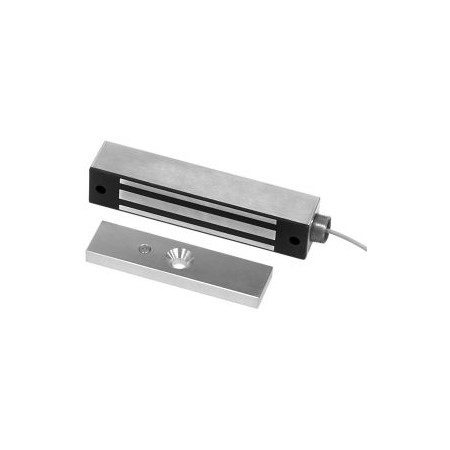

E-942FC-600 Seco-Larm Weatherproof 600lb. Electromagnetic Gate Lock

Features:

• For outdoor sliding and swinging electric gates.
• Lock is water and vandal resistant.
• Lock has attractive stainless-steel finish.
• Maintenance-free, factory-sealed design.
• Holding force - 600-lb (272kg).
• 12 or 24 VDC (selectable).
• No residual magnetism.
• MOV surge protection.
• "L" bracket and "Z" brackets available for easy mounting.
• UL and ULC listed.
• CE listed.
• RoHS compliant.

Specifications:

• Model Number - E-942FC-600
• Holding force - 600-lb (272kg)
• Operating voltage - 12 or 24 VDC ±10%
• Current draw - 500mA@12VDC, 250mA@24VDC
• Temperature - 14º~131º F (-10º~55º C)
• Magnet size - 8"x2-11/16"x1-9/16" (203x42x39 mm)
• Armature size - 6-1/4"x1-3/8"x5/8" (159x41x16 mm)
• Unit weight (approx.) - 4-lb 6-oz (2kg)
• Cable length (approx.) - 6-1/2"
• Certification - UL, ULC, CE
• RoHS compliance - Yes

E-942FC-600 Datasheet

E-942FC-600 Manual
