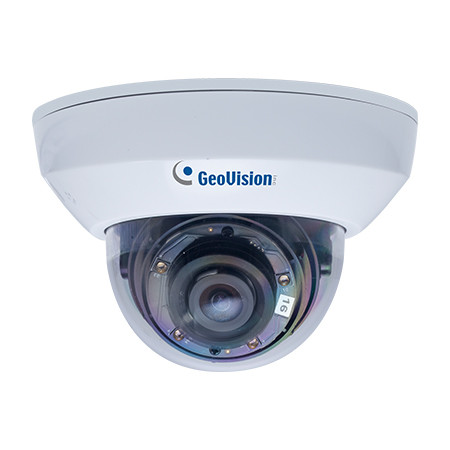

GV-MFD4700-0F Geovision 2.8mm 20FPS @ 4MP Indoor Day/Night Dome IP Security Camera 12VDC/PoE

Features:

Features:

• Model Number: GV-MFD4700-0F
• Manufacturer SKU Number: 84-MFD4700-0F10
• Sales Part Number: 115-MFD4700-0F2
• 1/3" progressive scan super low lux CMOS
• Min. illumination at 0.002 lux
• Dual streams from H.265, H.264, and MJPEG
• 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
• Two-way audio
• Intelligent IR
• 3-axis mechanism (pan / tilt / rotate)
• One sensor input and one alarm output
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
• Day and Night function (with removable IR-cut filter)
• Megapixel lens
• DC12V / PoE (IEEE 802.3af)

Specifications:

Camera

• Image Sensor - 1/3" progressive scan super low lux CMOS
• Picture Elements - 2592 (H) x 1520 (V)
• Minimum Illumination - Color: 0.003 Lux, B/W: 0.002 Lux, IR ON: 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/16000 sec)
• White Balance - Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 50 dB
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - Yes
• Day / Night - Yes (with removable IR-cut filter)
• Lens Type - Fixed
• Focal Length - 2.8 mm
• Maximum Aperture - F/2.0
• Mount - M12, Pitch 0.5 mm
• Image Format - 1/2.7"
• Horizontal FOV - 96°
• IR LED Quantity - 65.6 ft
• Max. IR Distance - 4 IR LEDs
• Operation - Focus: Fixed, Zoom: Fixed, Iris: Fixed

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Stream 1 from H.265 or H.264, Stream 2 from H.265, H.264 or MJPEG
• Frame Rate - 50Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520, 60Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520 * The frame rate and performance may vary depending on the number of connections and data bit-rates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux Enhancement, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two-way audio
• Sensor Input - 1 Input (dry contact)
• Alarm Output - 1 Digital output (200 mA 5V DC)

Video Resolution

• Main Stream - 4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480, 16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 5:4 1280 x 1024, 640 x 512
• Sub Stream - 4:3 1024 x 768, 640 x 480, 320 x 240, 16:9 1280 x 720, 640 x 360 (Default), 448 x 256, 5:4 1280 x 1024, 640 x 512, 320 x 256

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

• Temperature Detector - Yes
• Camera Angle Adjustment - Pan -45° ~ 45°, Tilt 0° ~ 70° , Rotate 0° ~ 360°
• Connectors - Power: 2-pin terminal block, PoE, Ethernet: Ethernet (10/100 Base-T), RJ-45 cable, Digital I/O: 3-pin terminal block, pitch 2.5 mm (0.1’’), Local Storage: Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported.
• LED Indicator - 2 LEDs: Power, Status

General

• Environment Temperature - Start-up: 32 °F ~ 122 °F, Operation: 32 °F ~ 122 °F
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 12V DC, 6W
• Dimensions (without lens) - 4.33" x 2.86"
• Weight - 0.44 lb
• Regulatory - CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

• PoE Standard - PoE (IEEE 802.3af Power over Ethernet / PSE)
• PoE Power Supply Type - End-Span and Mid-Span
• PoE Power Output - Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Software Supported - GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.3.0), GV-Edge Recording Manager (V1.2.0.0), GV-Center V2 (V15.10.0.0), GV-Recording Server (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV-Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
