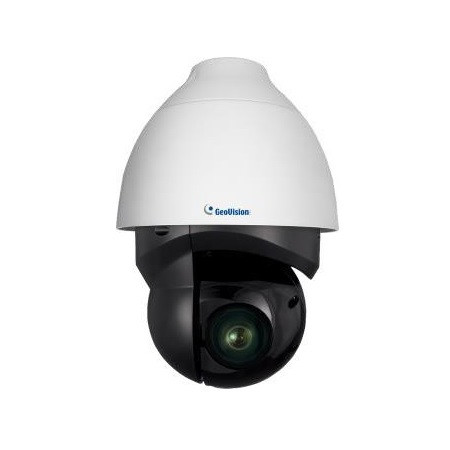

GV-QSD5731-IR Geovision 4.6~152mm 33x Optical Zoom 30FPS @ 5MP Outdoor IR Day/Night WDR PTZ IP Security Camera 24VAC/PoE

Features:

• Model Number: GV-QSD5731-IR
• Manufacturer SKU Number: 84-QSD5731-IR00
• Sales Part Number: 125-QSD5731-IR
• 1/2.8" progressive scan low lux CMOS sensor
• Quad streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2592 x 1944
• 33x optical zoom and unlimited digital zoom
• Intelligent IR
• IR distance up to 150 m (500 ft)
• Servo Feedback, PTZ can return to its original position when encountering external force
• Day and night function (with removable IR-cut filter)

Specifications

Camera

• Image Sensor - 1/2.8" progressive scan low lux CMOS
• Optical Zoom - 33x
• Digital Zoom - Unlimited
• Picture Elements - 2592 (H) x 1944 (V)
• Minimum Illumination - Color - 0.02 Lux, B/W - 0.002 Lux, IR ON - 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/10000 sec)

Optical Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Focal Length - 4.6 ~ 152 mm
• Maximum Aperture - F/1.6
• Horizontal FOV - 55° ~ 2°
• Operation - Focus - Auto/Manual, Zoom - 33x, Iris - Auto/Manual
• IR LED Quantity - 16 IR LEDs
• Max. IR Distance - 150 m (500 ft)

Video

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Quad streams from H.265, H.264 or MJPEG
• Frame Rate - 30 fps at 2592 x 1944 (60/50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).

Audio

• Audio Compression - G.711/G7.26/ LPCM/AAC (optional)
• Audio Support - Two‐way Audio

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS, ONVIF (Profile G, S, T)

Mechanical

• Connectors
  • Power - Terminal Block (AC24V), PoE
  • Ethernet - 10/100 Base-T, RJ-45 connector
  • Audio - 1 in (Audio In Terminal Block); 1 out (Audio Out Terminal Block)
  • Local Storage - SD card slot (SDHC / SDXC, Class 10)
  • TV-Out - BNC connector
  • Digital I/O - I/O Terminal Block

Operation

• Pan Travel - 360° endless
• Tilt Travel - -20° ~ 100°
• Manual Speed
  • Pan - 0.1° ~ 90°/s
  • Tilt - 0.1° ~ 55°/s
• Preset Speed
  • Pan - 280°/s
  • Tilt - 280°/s
• Presets
  • Max. Number - 256
  • Accuracy - 0.1°
• Sequence
  • Max. Number - 8
  • Max. Presets Allowed - 64
• Auto Pan - 4
• Automatic Function - Preset, Sequence, Auto Pan, Cruise
• Mechanical Flip - Yes
• Digital Slow Shutter - On / Off
• Motion Detection - On / Off
• Wide Dynamic Range - On / Off
• Day/Night: Mechanical IR Cut Filter - On / Off
• Alarm
  • Digital I/O - 4 Inputs, 2 Output

General

• Operating Temperature - ‐40°C ~ 50°C (‐40°F ~ 122°F)
• Humidity - 10% to 90% (no condensation)
• Dimension - Ø 207 x 300 mm (8.15” x 11.81”)
• Weight - 3.8 kg (8.38 lb)
• Power Source - PoE++ / 24V AC
• Power Consumption - 44 W
• Ingress Protection - IP66
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese, Simplified Chinese

Applications

• Software Supported - GV-VMS (V17.1.0.100), GV-DVR / NVR (V8.7.4.0), GV-Control Center (V3.5.0.0), GV-Recording Server / Video Gateway (V1.3.0.0), GV-Edge Recording Manager (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0) *It is required to apply patch files to all the supported software except for GV-VMS (V17.1.0.100).
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App

GV-QSD5731-IR Datasheet
