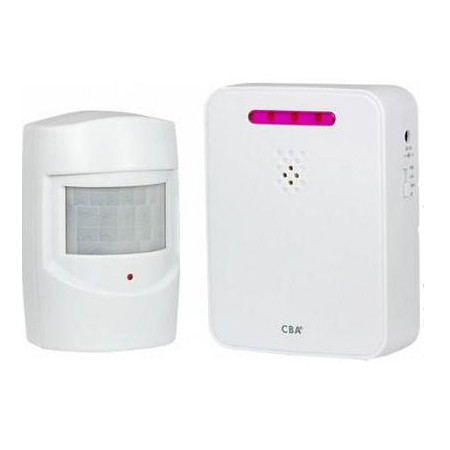

RC-135Q Seco-Larm Wireless Motion Alert

Features:

• Provides audio and/or visual alert when triggered
• Sensor range up to 26ft (8m) at 40^º angle at 3ft (1m) height
• Up to 390ft. (120m) transmission range between sensor and receiver1
• Plug and play operation, no hardwiring necessary
• Battery operated (3 AAA for sensor and 3 C for receiver). Batteries not included. Receiver can be powered by a 500mA@6VDC power adapter (not included)
• Battery life for sensor is up to 6 months and for receiver is up to 3 months (based on 4 triggers/day on High mode)
• Low battery indicators on sensor and receiver
• 4-position switch: Off, Silent, Low, High

Specifications

Wireless Motion Alert

• Frequency - 433.92MHz
• Transmission Range - Up to 390ft (120m)
• Power Supply - Receiver - 1.5VDC C-cell batteries x3 (not included) or 500mA@6VDC power adapter (not included, use 2.1mm)
• Power Supply - Sensor - 1.5VDC C-cell batteries x3 (not included)
• Low Battery Indicator - LEDs flash on sensor and receiver
• Material - ABS plastic, white
• Sound Level (Receiver) - 92dB or 80dB@1ft. (±5dB) or silent (switchable)
• LED Indicators (Receiver) - 3 LEDs flash when sensor activated
• PIR Sensor Range - 26ft (8m) at 40° angle at 3ft (1m) height
• Enclosure (Sensor) - IP44
• Operating Temperature - -4°~113°F (-20°~45°C)
• Dimensions - Receiver - 5-1/8” x 3-13/16” x 1-5/8” (130 x 96 x 42 mm)
• Dimensions - Sensor - 4-3/16” x 3” x 1-7/8” (106 x 76 x 48 mm)
• Weight - Receiver - 5-oz (125g)
• Weight - Sensor - 3-oz (90g)

RC-135Q Datasheet
