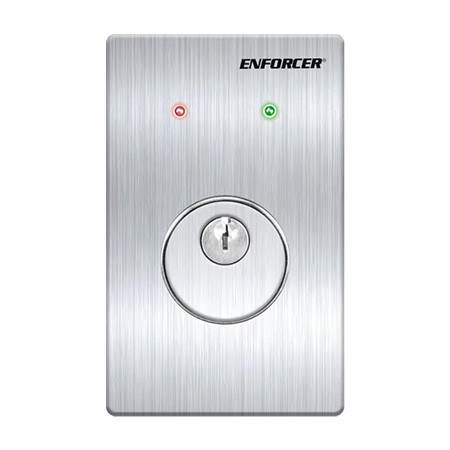

SD-72281-6MQ Seco-Larm Single-Gang Mortise Cylinder Key Switch with LED Indicators - DPDT Momentary

Features:

• Keyed mortise cylinder (2 keys included)  Mortise cylinder removable for ease of keying
• Red (standby) and green (triggered) LEDs  Flush mount with vandal-resistant security screws
• Chrome-plated aluminum back plate fits a standard single-gang back box
• Stainless steel front cover conceals mounting screws
• DPDT, 25A@24VAC contact rating
• Color-coded wires for easy wiring
• Maintained output (SD-72231-6MQ) or momentary (SD-72281-6MQ) output

The ENFORCER Single-Gang Mortise Cylinder Key Switches with LED (available with either momentary or maintained outputs) allows a user to force a door to unlock with a keyed switch when a keypad or proximity card reader fails to activate an electronic lock. This provides a backup for access control systems, so that the system is not reliant on the integrity of a single device.

Specifications

• Model - Momentary
• Switch type - Switch type
• LED Indicators - Red (standby) and green (triggered)
• Contact switch - 25A@24VAC, NO/NC
• Dimensions - 2 3/4" x 4 1/2" x 17/16" (69x114x37mm)

SD-72281-6MQ Datasheet
