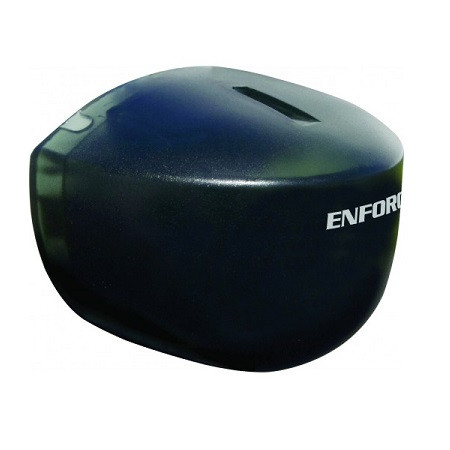

SD-R400-BQ Seco-Larm Microwave RTE Sensor

Features:

• 12~24 VDC Operating voltage
• 24.150GHz Microwave Doppler technology
• 10ft (3m) Sensing range, adjustable
• Adjustable relay output time, 1~33 s
• Small size allows for a wide range of applications
• Universally compatible, install the sensor above automatic doors for no-touch ingress/egress
• More consistent detection in large areas and over a wide range of temperatures
• Indoor use only

The Enforcer Microwave RTE Sensor is a compact motion sensor with an adjustable output timer that can be connected to an access control keypad, gate opener, and can be used to trigger any device with an egress input.

Specifications

• Operating voltage - 12~24 VDC
• Current draw
  • Standby - 23mA@12VDC / 14mA@24VDC
  • Active - 39mA@12VDC / 21mA@24VDC
• Sensor frequency - 24.150GHz
• Sensor range - 3’~10' (0.9~3m), adjustable
• Sensor angle
  • Vertical - 0°~90°
  • Horizontal - ±30°
• Detection angle
  • Front/back - 20°~30°
  • Left/right - 60°~70°
• Min. detection speed - 5cm/s
• Output relay - 2A@30VDC (0.5A@125VAC) Dry relay, NO/NC/COM
• Relay output time - 1~33 s
• Mounting height - 6'~10' (1.8~3 m)
• Cable length - 8' (2.5m)
• LED Indicator - Red on relay activation
• Case material - Black ABS and polycarbonate
• Operating temperature - -4°~131° F (-20°~55° C)
• Dimensions - 3 1/8" x 2 3/8" x 2 1/8" (80 x 60 x 54 mm)
• Weight - 2.5-oz (70g)
