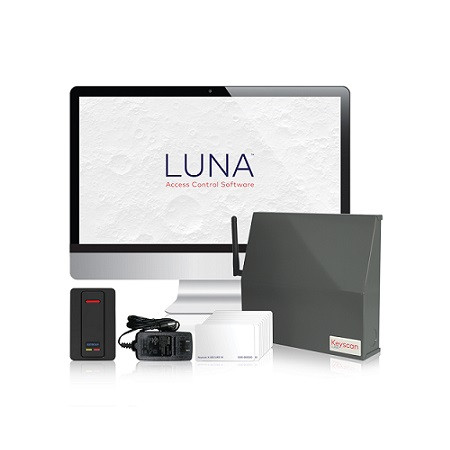

SDACSKT Dormakaba RCI Keyscan Single Door Access Control Kit

Features:

• A convenient and cost-effective single door control solution featuring: SDAC Unit; K-SMART3 reader; K-SECURE1K10 (10-pack) credentials, 12VDC 2.5Amp transformer power supply - all in one package
• 1 powered relay (up to 500mA at 12 VDC) for electric strike or electromagnetic lock (sold separately)
• Network configuration WiFi embedded web server
• Fast and convenient WiFi point-to-point or WLAN connectivity only
• DIP switches for system options
• Selectable filter transaction reports

Specifications

• Doors supported - 1
• Reader ports - 2 (in/Out)
• Dimensions - W - 6.875" (17.46 cm) x H - 7.625" (19.37 cm) x D - 1.75" (4.45 cm)
• Weight - 1.7 lbs (780g)
• Housing - 22 GA steel, gray powder coat
• Environmental - Operating Temperature: 32° F to 120° F (0° C to 49° C) Humidity: 0 % to 90 % R.H, non-condensing
• Power Inputs - +12V DC from supplied plug-in transformer or independent power supply
• SDAC Current - 170 mA to maximum 200 mA
• Communication - 802.11 Wireless b/g/n Adapter
• PTC Resettable Fuses - Reader port 1 - Up to 500 mA, Reader port 2 - Up to 500 mA, Door output - Up to 500 mA, RTE port - Up to 300 mA
• Software Requirements - LUNA
• Applications - Indoor installations only

SDACSKT Specifications PDF
