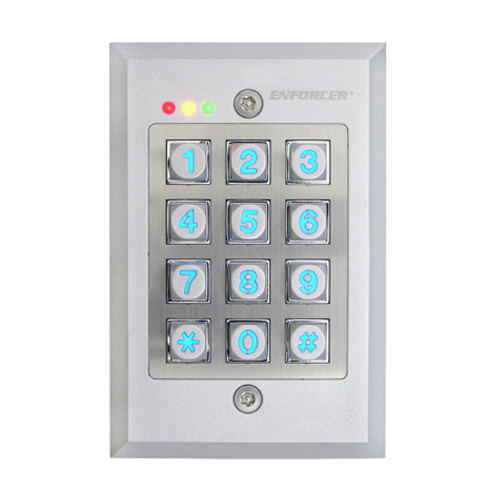

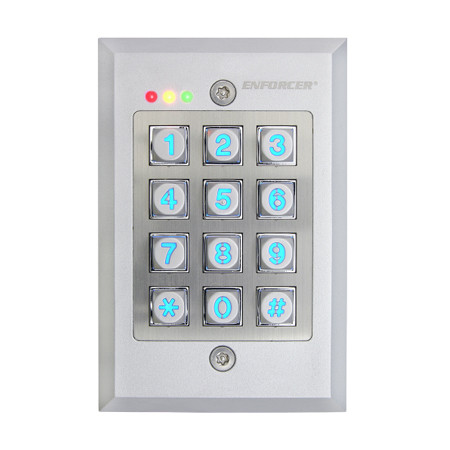

SK-1123-FDQ Seco-Larm Vandal Resistant Flush-Mount Access Control Keypad

Features:

• 12~24 VAC/VDC auto-adjusting operation
• Up to 1,000 possible user codes (000~999) programmable for output #1 and 100 (001~100) for output #2
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Output #1: Form C relay, 1A@30VDC max.
• Output #2: Transistor ground, 100mA@24VDC
• Outputs #1 and #2 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output: N.C. Dry contact, 50mA@24VDC max.

Specifications

• Operating Voltage - 12~24 VDC/VAC
• Current Draw at 12VDC
• Standby - 15mA
• Keypress - 40mA
• Output 1 active - 65mA
• Output 1 & 2 active - 66mA
• Total max current draw - 100mA
• Outputs
• #1 – Form C - 1A@30VDC
• #2 – Transistor Ground - 100mA@24VDC
• Duress - 100mA@24VDC
• Interlock - 100mA@24VDC
• Tamper - 50mA@24VDC
• Inputs
• Egress - N.O. Ground
• Door sensor - N.C. Ground
• Door Inhibi - N.O. Ground
• Operating Temperature - -4°~158°F
• Operating humidity - 5~95% Non-condensing
• IP Rating - IP66
• Dimensions - 4 3 /4"x31 /8"x113/16"
• Weight - 16.2-oz
