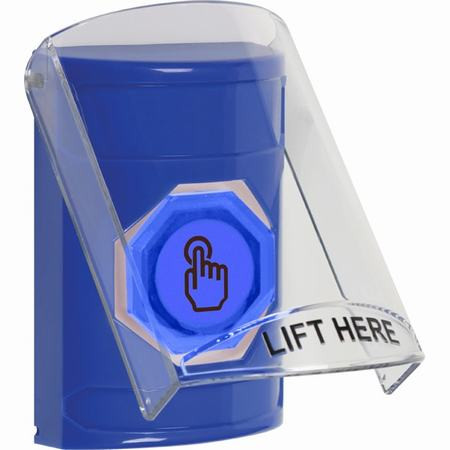

SS2426NT-EN STI Blue Indoor Only Flush or Surface Momentary (Illuminated) with Blue Lens Stopper Station with No Text Label English

Features:

• Multipurpose push button switches cover a wide range of applications both indoors and outdoors
• Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
• Unique, curved design helps protect against accidental activation
• Station housing molded of tough polycarbonate
• UL Listed to U.S. and Canadian safety standards
• Models used with LT-1UL Latching Timer Module are Listed for access control
• Stainless steel backplate
• Push buttons are ADA Compliant (excludes "3" key switch button)
• 5VA flammability rating on backplate and spacer
• Typical working properties of polycarbonate are -40° to 250°F (-40° to 121°C)
• Polycarbonate complies with FDA regulations for food contact applications

These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They’re called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language

Specifications

• Two (2) Form "C" contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC
• 12-24VAC/VDC LED

SS2426NT-EN Datasheet

SS2426NT-EN Stopper Station Ordering Guide
