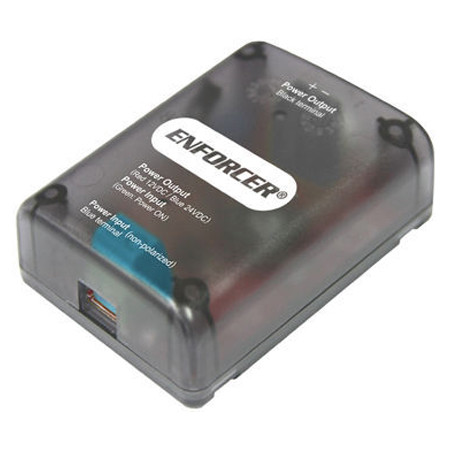

ST-LA130-TTQ Seco-Larm 3A Voltage Converter

Features:

• Three models available, providing varying degrees of
• low-voltage DC output
• Built-in overload protection
• Regulated and filtered output
• Green LED indicates power input
• Red and Blue LEDs indicate power output

ENFORCER Power Converters “step down” voltage, converting low-voltage AC or DC into regulated DC outputs.These converters are useful for DC CCTV cameras, access controls, and many other applications where low-voltage DC output is required.

Specification

• Input connector-Terminal block
• Output Connector -Terminal block
• Input voltage
  • 18~24 VAC/VDC for 12VDC
  • 24~28 VAC or 26~28 VDC for 24VDC
• Output voltage-12/24 VDC
• Output current-3A@12VDC, 1.5A@24VDC
• LED Indicators
  • Green - Power input
  • Red - 12VDC Power output
  • Blue - 24VDC Power output
• Current Protection-3A PTC Fuse
• Overheat Protection-Built-in
• Overload Protection-Built-in
• Dimensions-21/2”x17/8”x15/16” (64x48x24 mm)
