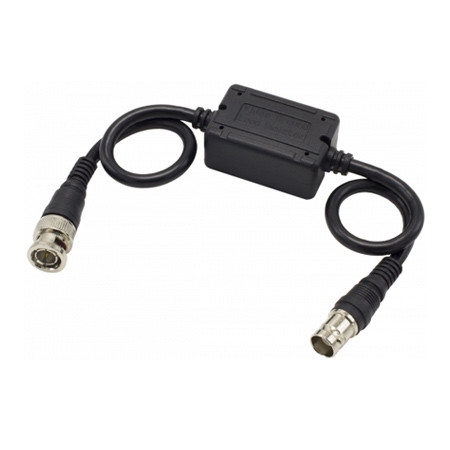

VG-1C12YQ Seco-Larm HD-TVI/HD-CVI/AHD/Analog Ground Loop Isolator

Features:

• HD-TVI / HD-CVI / AHD / Analog compatible
• Reduces ground loop interference
• BNC terminals for easy installation
• Built-in surge protection
• Prevents video-signal distortion, picture tearing, cross talk, and other picture quality problems
• Passive operation - No external power required
• Use with standard BNC coax cables or with 4-in-1 HD video baluns

Specifications

• Bandwidth - Video DC to 40MHz
• Insertion Loss - ≤0.5dB
• Frequency Response - 5Hz~10MHz
• Isolation Voltage - 800VDC (min.)
• Insulation Resistance - ≥100MΩ
• Surge Protection - 4kV, 10/700μs IEC 61000-4-5/1955
• Connector-In - BNC Male
• Connector-Out - BNC Female
• Impedance - 75Ω (BNC-to-BNC)
• Cable Length - 7-7/8" (200mm) each side
• Material - ABS Plastic
• Operating Humidity - 0~95% non-condensing
• Operating Temperature - -4°~140° F (-20°~60° C)
• Dimensions - 1-11/16"x1-1/8"x1-3/16"
• Weight - 2.0-oz

VG-1C12YQ Specification PDF
