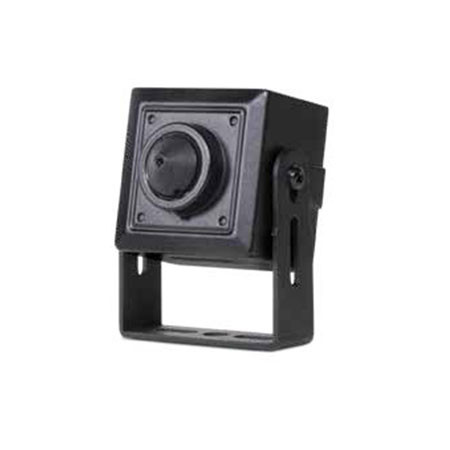

720-100128 Linear 3.7mm 30FPS @ 1920x1080 WDR Pinhole IP Security Camera 12VDC

Features:

• H.264, H.265 Video Compression
• SDMicro Card, 128GB
• 1/2.8" Progressive Scan CMOS
• 3.7mm Lens
• 2MP (1080p) Resolution
• Multiple Streams
• Wide Dynamic Range (WDR)
• Region of Interest (ROI)

The Pin Hole Camera is easy to mount inside the Telephone Entry platform. Connect to LAN and configure with NVR. Optionally, store video on SDMicro card in camera.

Specifications

Camera

• Image Sensor - 1/2.8" Progressive Scan CMOS
• Min. illumination - Color 0.05Lux (AGC ON), B&W 0.01Lux (AGC ON)
• Auto Iris - Fixed
• Wide Dynamic Range - WDR>120dB
• Digital Noise Reduction - 3D
• Lens - 3.7mm
• FOV - 84°


• Video Compression - H.265, H.264, MJPEG
• Bit Rate (CBR/VBR)
  • Main stream - 500Kb - 12,000Kb
  • Sub stream - 200Kb - 8,000Kb
• Max. Resolution - 1920x1080/30fps
• Stream
  • Stream 1 - 1920x1080 / 1280x720
  • Stream 2 - D1/VGA/640x360/CIF /QVGA
• Image Setting - Rotate Mode, Saturation, Brightness, Contrast, Sharpness
• HLC - Auto
• 9:16 Corrido mode - Yes
• ROI - Yes
• Defog - Yes

Network

• Network Protocols: - IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPoE, SMTP
• Alarm Trigger - Motion Detection, Network disconnect, I/O alarm
• RTSP Video - Standard RFC2326, Support QuickTime / VLC Player
• Security - User security authentication, Reset, Hardware Watch Dog
• System Compatibility - ONVIF (Profile S)

Interface

• Ethernet - 1 Ethernet (10/100 Base-T) RJ-45 Connector
• Edge Storage - SD/SDHC Max 128GB

General

• Power Input - DC12V (e3 Entry provides power for the camera)
• Operating Temperature
  • Starting Temperature - -10°C ~ 50°C (14°F ~ 122°F )
  • Working Temperature - -20°C ~ 50°C (-4°F ~ 122°F)
• Approvals - CE / FCC
• Product Dimensions - 37.6 x 32.8 x 46.5mm

720-100128 Specifications PDF
