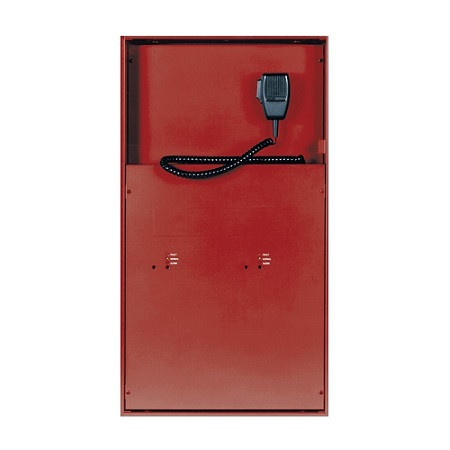

EVAX-150R Evax by Potter Voice Evacuation Panel - 100 Watt Amplifier 50W Amplifier - Red
- Model Number: EVAX-150R
- Clean Dead-front Construction
- 8 Megabyte MP3 driver
- 25 or 70 VRMS Field Selectable Class A / B Speaker Circuit
- 120 VAC Power Supply and Battery Charger
- Live Microphone Override of Message and Tone
- Analog Addressable Compatible
- High Reliability, No Maintenance, Fully Supervised
- Easy Installation and Operation
The EVAX-150 panel provides 150W of speaker power. Speaker zones can be configured for general alarm or alarm by zone operation as required. Digital message repeater, microphone, 120 VAC power supply and battery charger are all built in. The EVAX Series voice evacuation can be configured for Churches, Restaurants, Movie Theaters, Auditoriums, and High Rise buildings.
- Primary Power - 0.8 A @ 120VAC
- 24VDC Battery Power - 0.15 Standby, 0.8 Alarm
- Output - 50 Watts @ 25/70 VRMS
- Backbox Dimensions (WxHxD) - 14.5" x 27" x 4"
- Color - Charcoal Grey (Standard), Red (Optional)
