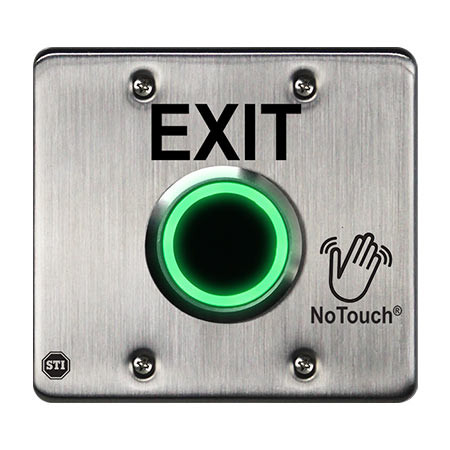

NT-SS201-EN STI NoTouch Double Gang Outdoor Sensor - EXIT - Stainless Steel

MSRP: $80.00
$59.00
(You save $21.00 )
(No reviews yet) Write a Review
SKU:
NT-SS201-EN

Features:

  • NoTouch infrared wave action
  • Allows user to exit a protected door without the touch of a button
  • To exit, person waves hand in front of the button
  • Helps reduce the spread of germs
  • Faceplate constructed of medical/food grade 304 stainless steel
  • Adjustable relay latch 0.5~20 second
  • Form "C" dry contact, 0.5A @ 120VAC, 1A @ 24VDC
  • IP65 Switch
  • State indicator LED - Standby/Active Red/Green (default) or selectable green/red

This touch free button applies NoTouch technology which helps eliminate the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.
NoTouch Stainless Steel Button offers three standard models: OPEN, EXIT and the international exit symbol representing a person exiting. Custom models are also available with printing capabilities at STI's corporate and international offices.
The button is constructed of corrosion resistant stainless steel, allowing it to take tough knocks in stride. This durable and long lasting button is easily installed within minutes right on site. The faceplate is slightly oversized for retrofit applications to cover marks from a previous install.

Specifications

General Information

  • Ideal for public buildings of almost any kind
  • Helps reduce the spread of germs
  • State indicator LED Standby/Active Red/Green (default) or selectable green/red
  • Switch IP65
  • One year guarantee on electro mechanical and electronic components

Construction

  • Faceplate is constructed of medical/ food grade 304 stainless steel
  • Button constructed of polycarbonate
  • Heavy duty switch plate and backbox 1.5mm thick

Installation

  • Faceplate is slightly oversized to cover old installation marks
  • Operating temperature 14°F to 158°F (-10°C to 70°C)
  • Operating life - Mechanical relay 1,000,000 cycles, IR sensor 100,000 hours

Electronics

  • NoTouch infrared detection
  • Operating voltage 12VDC - 24VDC, 45mA (max.), Slim model 35mA (max.)
  • Detection range 1.5~6in, 4cm~15cm
  • Form "C" dry contact, 0.5A @120VAC, 1A @ 24VDC
  • Adjustable relay latch 0.5~20 sec

pdficon NT-SS201-EN Datasheet
