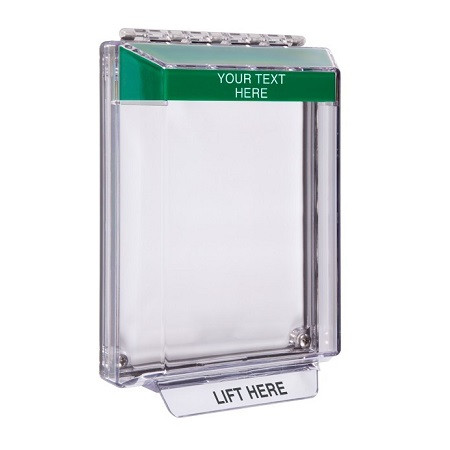

STI-14020CG STI Universal Stopper Low Profile Cover Flush Mount and Hood with Horn - Custom Label - Green - Non-Returnable

Features:

• Cover Option : Low Profile
• Mounting Option : Flush Mount
• Hood/Horn Option : Labeled Hood with Horn
• Hood/Horn Color Option : Green
• Label Option : Custom Label
• Protects against vandalism, accidental damage, dust and grime and severe environments inside and outside
• Protects pull stations, keypads, intercom stations, emergency buttons, electrical light switches or duplex plugs
• ADA Compliant
• Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components)
• Top and bottom of waterproof back box are threaded for 3/4" NPT rigid conduit
• Sized to fit most pull stations
• High strength continuous hinge
• Cover is molded from thick, tough polycarbonate material
• UV-stabilized to keep cover clear
• Gaskets included
• Typical working properties of polycarbonate are -40° to 250°F

These indoor/outdoor low profile or dome polycarbonate covers protect devices such as dual action pull stations, keypads for entry systems, intercom stations, emergency buttons, electrical light switches, duplex plugs, etc., without restricting legitimate operation. The versatile cover offers excellent protection against physical damage (both accidental and intentional), dust and grime as well as severe environments inside and out.

Specifications

Polycarbonate Enclosure

• Flammability - UL 94 V-2
• Cover wall thickness 0.125 inches

Temperature Range

• Electronics operating range: -40° to 120°F (-40° to 49°C) Below -4°F (-20°C), a remote power source is recommended
• Polycarbonate rated: -40° to 284°F (-40° to 140°C)

STI-14020CG Specifications PDF

STI-14020CG Manual
